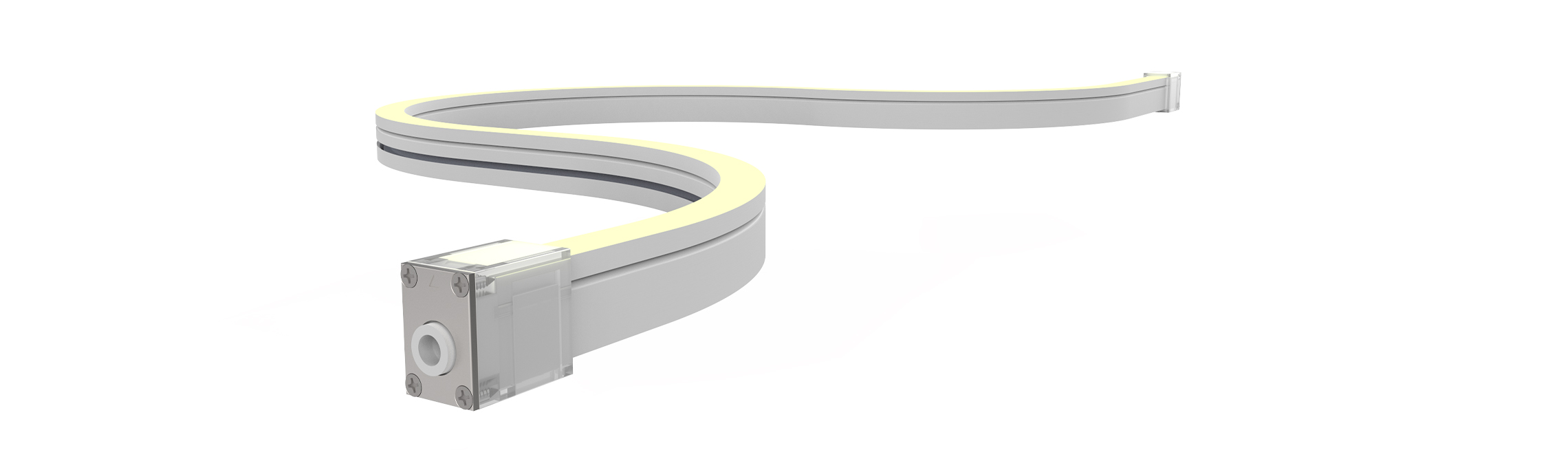

Trace Horizontal Tunable White

Trace Horizontal Tunable White

Linear LED system for straight or curved interior or exterior applications. This versatile system creates direct or indirect continuous illumination with a Tunable White range from 2200K – 6000K with precise color choice when used with DMX controls and software

FEATURES

  • Available range: 2200K – 6000K
  • Constructed using flexible SMD LEDs with zero voltage drop for reliability and uniformity of light
  • Used to outline structures or where traditional glass neon is used
  • Low Voltage 24V DC
  • Long-life LEDs with tight cutting increments for precise fi eld installation
  • UV Stabilized for exterior use with silicone housing (no yellowing or cracking)
  • IP67 rated
  • 1 Bin, 1.5 step color consistency
Mounting

Surface Mount

Ideal Applications

Indoor and Outdoor signs or building accents where smaller, detailed applications are necessary.

Trace Horizontal Tunable White

SPECIFICATIONS

  • Voltage = 24V DC
  • Power Consumption (W/ft) = Up to 4.5
  • Max Run (ft) = Up to 58
  • Dimming = MLV, ELV, 0-10V, DMX, TRIAC
  • Environment = Wet Location
  • IP Rating = IP67
  • Kelvin Temperature = Tunable White (TW)
  • CRI = 80+
  • Mount Options = Surface
  • Dimmable = Yes
  • Certifications = cULus
  • Warranty = 3 years

Product Dimensions
