Trace Vertical RGB+W

Trace Vertical RGB+W

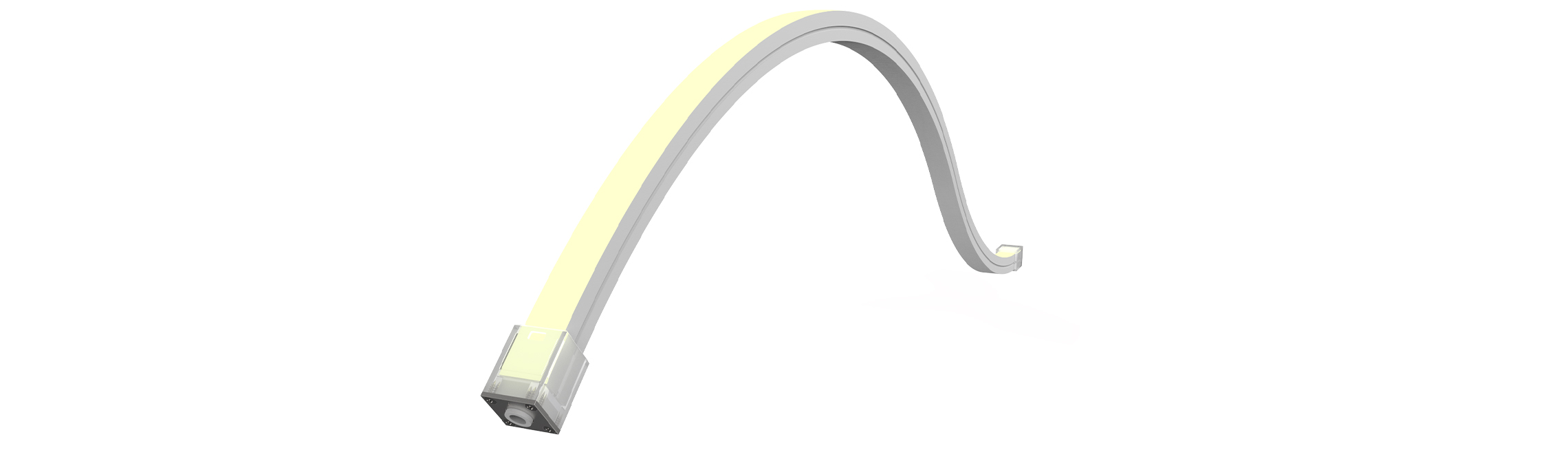

Linear LED system for straight or curved interior or exterior applications. This versatile system creates direct or indirect continuous illumination with three different fixture styles.

FEATURES

  • Red, Green, Blue and White (2700K) mixing for precise color choice when used with DMX controls and software
  • Constructed using flexible SMD LEDs with zero voltage drop for reliability and uniformity of light
  • Used to outline structures or where traditional glass neon is used
  • Low Voltage 24V DC
  • Long-life LEDs with tight cutting increments for precise field installation
  • UV Stabilized for exterior use with silicone housing (no yellowing or cracking)
  • IP67 Rating
  • IK07 Rating – protected against 2 joules impact
MOUNTING

Surface and Recessed Mount

Ideal APPLICATIONS

Indoor and Outdoor signs or building accents where smaller, detailed applications are necessary

Trace Vertical RGB+W

SPECIFICATIONS

  • Voltage = 24V DC
  • Power Consumption (W/ft) = Up to 4.5
  • Max Run (ft) = 58
  • Dimming = DMX
  • Environment = Wet Location
  • IP Rating = IP67
  • Kelvin Temperature = RGBW
  • Mount Options = Surface, Recessed
  • Certifications = cULus
  • Warranty = 3 years

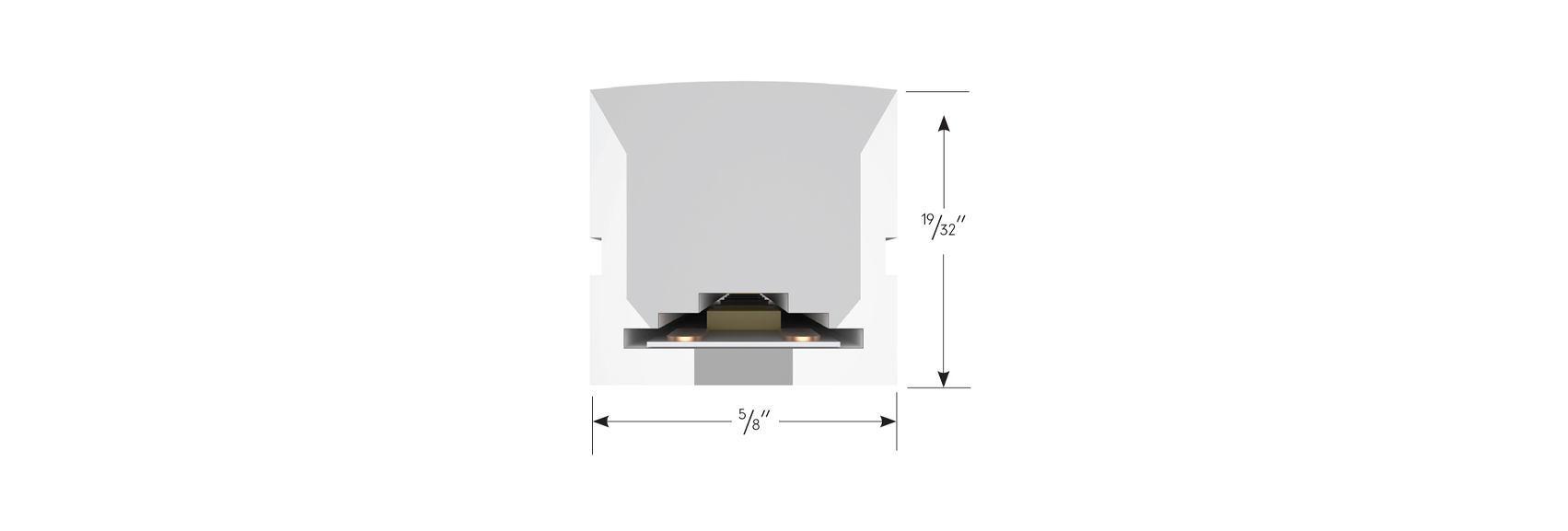

Product Dimensions

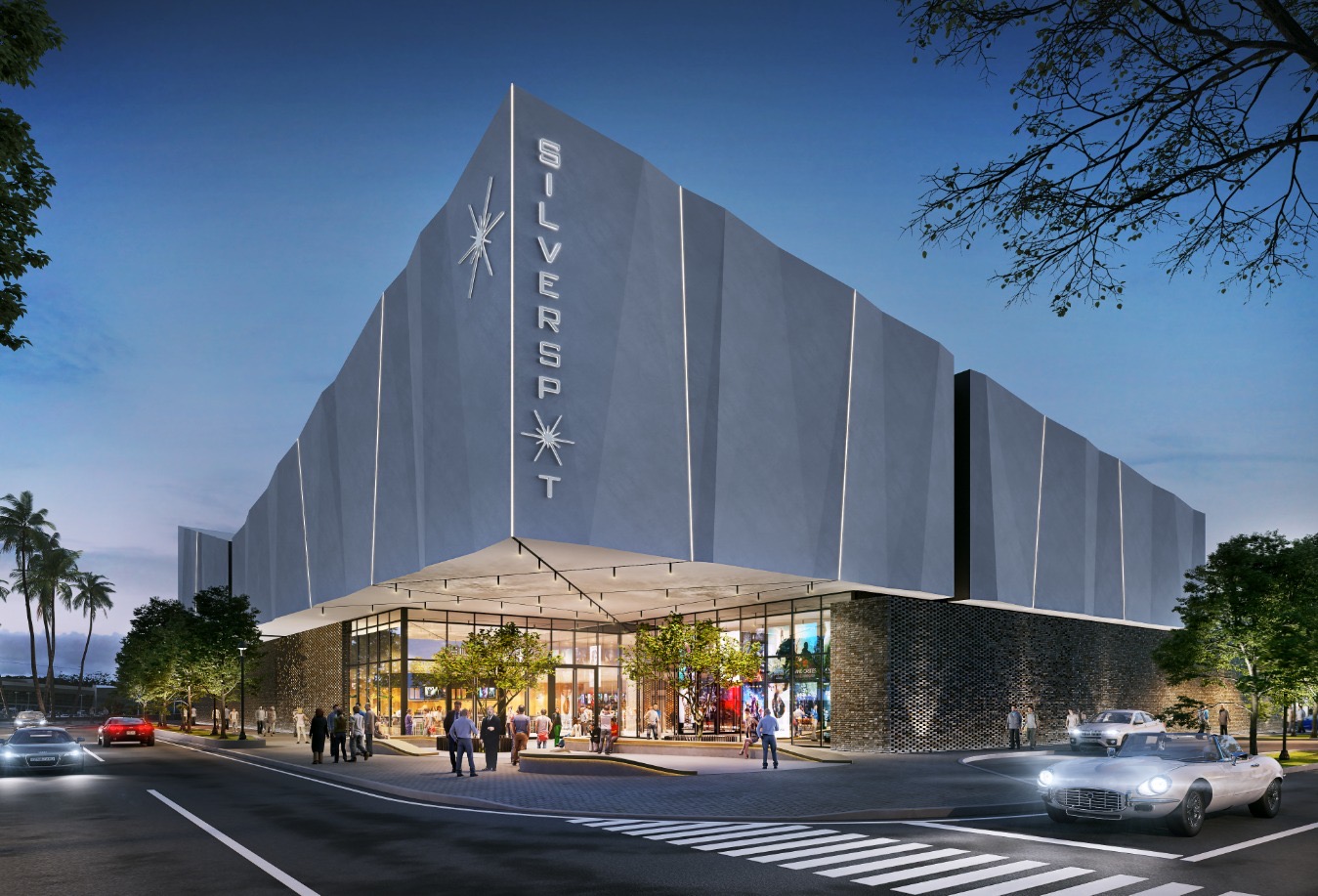

Application Photos
