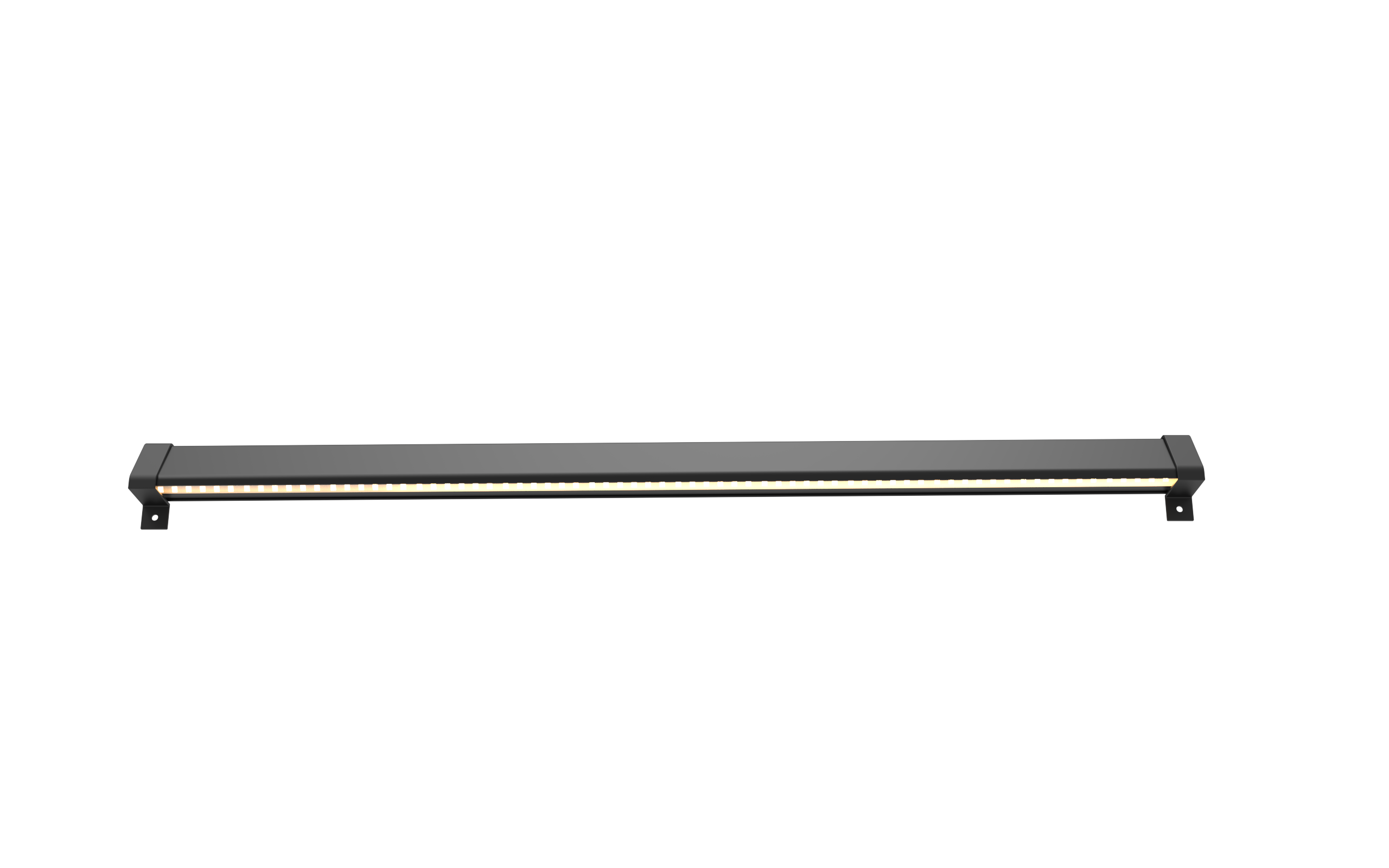

Fantasma Wall Continuous

An ultra-sleek and ultra-modern wall system that is 1¼” x 1¼” . The Fantasma Wall Continuous utilizes a low brightness LED TivoTape, designed for the theater entry way.

Fantasma Wall Continuous

Features

ADA Compliant
Optically clear polycarbonate co-extruded directional lens features 60° lighting cut-off for hidden, discreet illumination.
Base and lens available 4’ and 8’ field cuttable lengths with optional row indicator window.
Use with Tivoli’s patented two-tone bullnose stair nosing with reflective edge.

Mounting

Surface Mount

Ideal Applications

Interior walkways, egress, ramps, and staircases

Specs

Voltage = 12V DC
Lumen Output (lm/ft) = 21+
Power Consumption (W/ft) = 1.1W+
Max Run (ft) = 32
Dimming = MLV
Environment = Damp Location
IP Rating = IP54
LED Color ( Kelvin Temp ) = Amber, Red, Blue, 2700K, 3000K, 4000K, 6200K
CRI = 93
Efficacy (lm/W) = 23
Lumen Maintenance (L70) Hours = 75,000
Certifications = cETLus
Warranty = 5 Years
