Usher Wall

Indoor wall lighting. Illumination enhanced when used in combination with Tivoli’s Two-Tone Bullnose stair nosing with reflective edge for step delineation.
Usher Wall
Find Your Local Sales Rep

Features

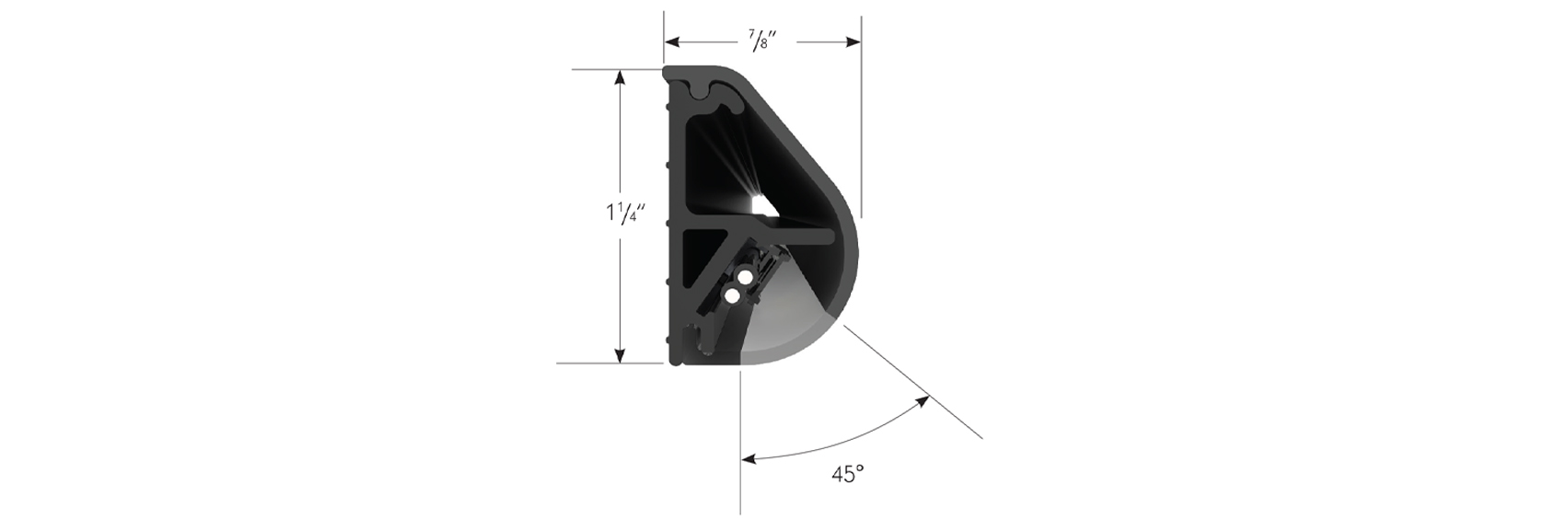

  • Compact (1¼” x 7/8”), visible light source tamper-resistant linear LED lighting system
  • Optically clear polycarbonate co-extruded directional lens features 110° lighting cut-off angle to illuminate pathway and delineate wall simultaneously
  • Base and lens available 4’ and 8’ field cuttable lengths
  • End-to-end continuous mounting with continuous through wires minimize voltage drop
  • Use with Tivoli’s patented two-tone bullnose stair nosing with reflective edge step delineation

Mounting

Surface Mount

Ideal Applications

Interior walkways, egress, ramps, and staircases

Specs

  • Voltage = 12V DC
  • Power Consumption (W/ft) = Up To 0.96
  • Max Run (ft) = Up to 120
  • Dimming = MLV
  • Environment = Damp Location
  • LED Color ( Kelvin Temp ) = Red, Amber, Blue, 1900K, 2700K, 3000K, 3500K, 4000K
  • CRI = 80+
  • Lumen Output (lm/ft) = 0-10
  • Efficacy (lm/W) = 26
  • Lumen Maintenance (L70) Hours = 75,000
  • Certifications = cETLus
  • Warranty = 5 Years

Downloads

Case Studies

No images found in the case studies gallery.
