FUSE RGB

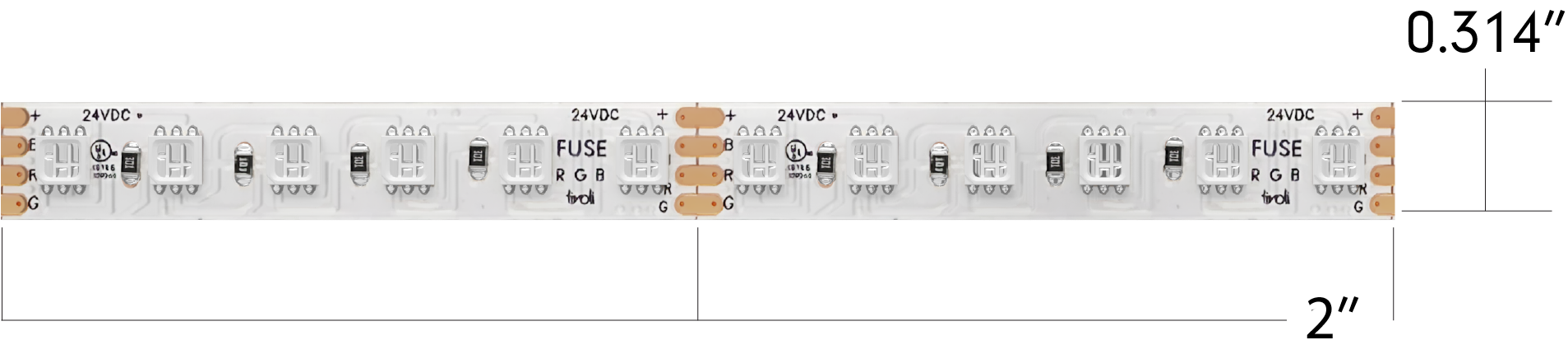

Fuse RGB mini is a small profile of 8mm width and tight LED spacing produces consistent color with no visible hotspots.
FUSE RGB
Find Your Local Sales Rep
Case Studies
Downloads
Gallery
Features
3 Channel system
Protected by Tivoli’s exclusive eXo Shield for ultimate dust and moisture protection
3-in-1 RGB chip
Multiple mounting options with Tivoli’s Urban channel series.
Tight SMD LED spacing (8mm overall width) provides smooth visual delivery
Provided with factory-applied 3M VHB adhesive tape on the back for quick application
Dimmable with DMX protocol
Compatible with Tivoli’s own CUEpro software
Low Voltage (24V DC)
IP54 indoor and IP67 Outdoor available
5-year warranty
Mounting
3M VHB Tape (factory installed)
Specs
Voltage
=
24V DC
Power Consumption (W/ft)
=
4.4W
Max Run (ft)
=
17'
Dimming
=
DMX
Environment
=
Dry Location
IP Rating
=
IP54, IP67
LED Color ( Kelvin Temp )
=
RGB
Lumen Output (lm/ft)
=
100-200, 200-300
Lumen Maintenance (L70) Hours
=
60,000
Certifications
=
cULus
Warranty
=
5 Years
Similar Products
FUSE Pixel24 RGB
FUSE Pixel24 RGBW
FUSE RGB+W
Downloads
Specification
Fuse RGB Specification - Indoor
Fuse RGB Specification - Outdoor
Installation
Fuse RGB Installation - Indoor
Fuse RGB Installation - Outdoor
Sale Sheet
TivoTape Comparison Chart
IES File
TPLFS-I-RGB-24

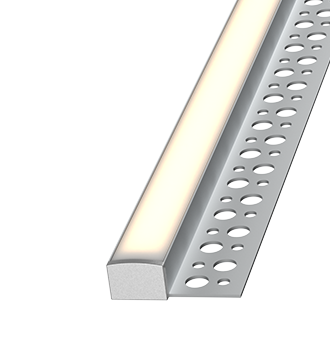

Compatible Extrusion
ASTORIA
DEWAR
DOME
DYER
EDGE
EDINGER
HORIZON
MINI
MOFETT
MOSHER
NOVA
NOYES
VALENCIA
WARNER
