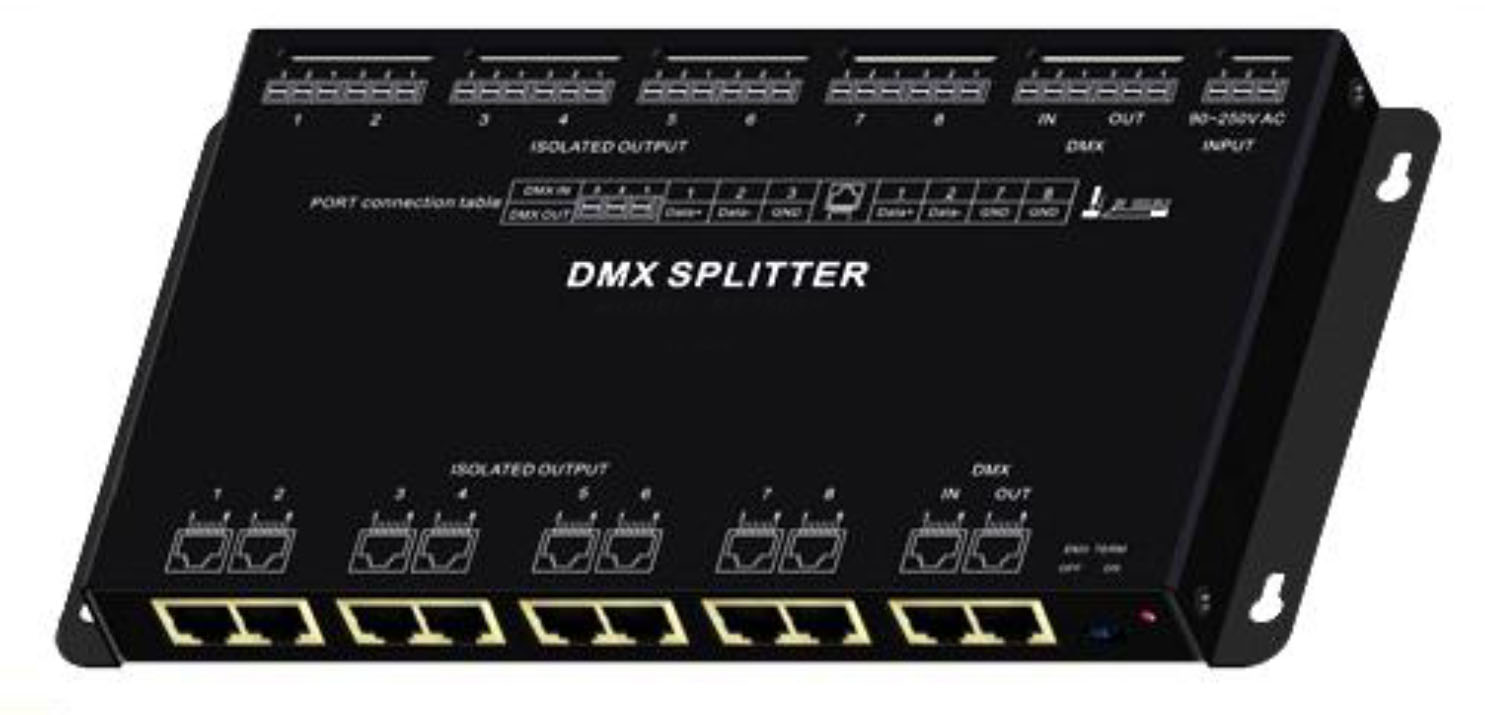

DMX-SPLT-8

The DMX-SPLT-8 is a compact and efficient DMX512 splitter designed for reliable signal distribution across up to 8 output channels. With support for both RJ45 and 3-pin hardwire connections, it offers flexible input/output configurations and optional daisy-chain setup. Operating on 12–24V DC, this unit ensures stable performance in dry indoor environments and is ideal for complex DMX installations requiring dependable signal management.

DMX-SPLT-8

FEATURES

Supports up to 8 DMX512 output channels
Compatible with both RJ45 and 3-pin hardwire input/output connections
Optional daisy-chain setup for RJ45 input configuration
Offers both 3-pin and RJ45 input connection types
Universal 12–24V DC power input
Built-in DMX terminal On/Off switch for signal control
Compact metal housing with digital display

Specs

Voltage = 12V DC, 24V DC
Power Consumption (W/ft) = 1.5W
Dimming = DMX
Network = Yes
Memory = Micro SD Card
Control System = DMX 512
Certifications = cETLus
Warranty = 5 Years
