FLEXILE SM System

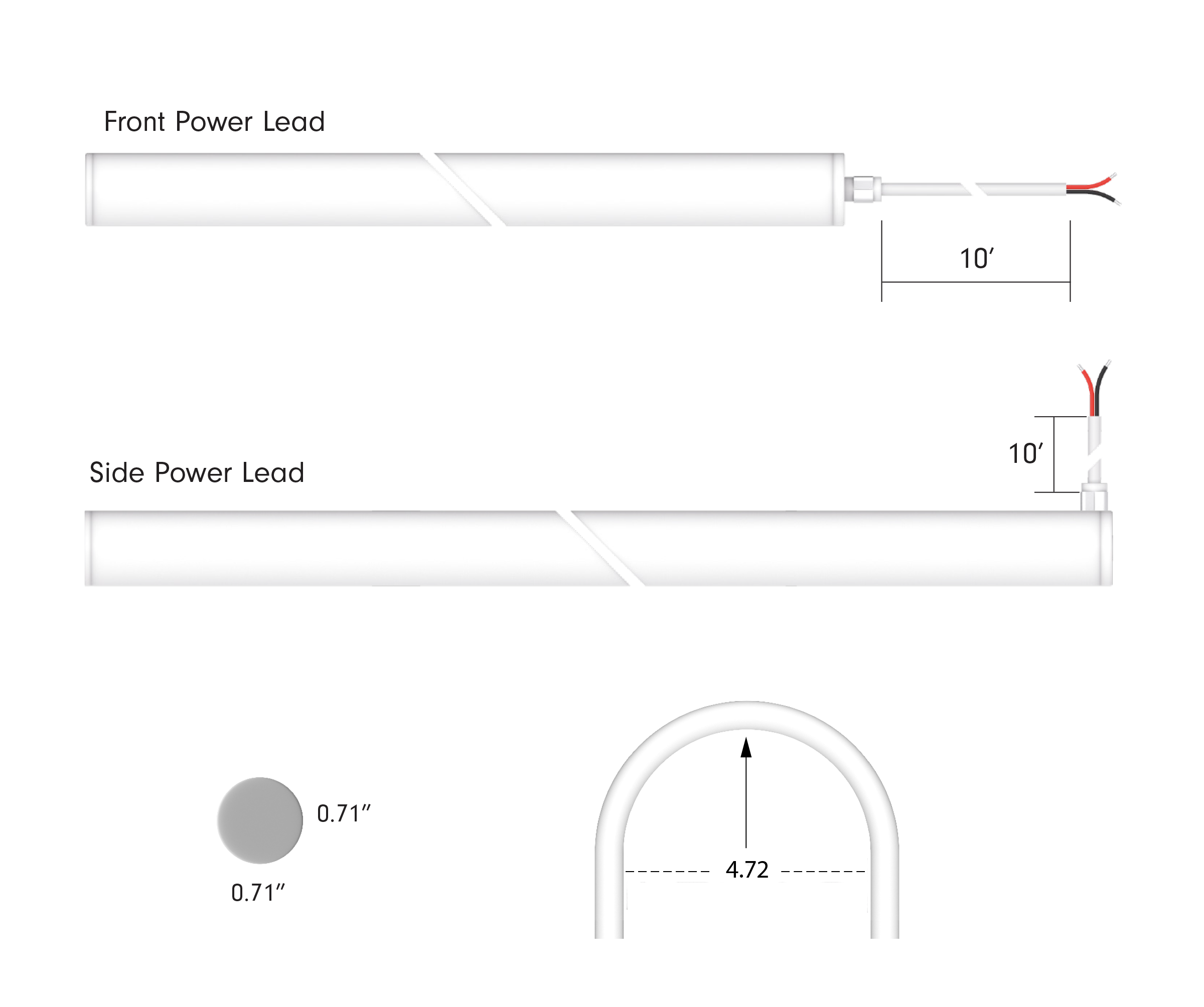

FLEXILE SM by Tivoli: a 360° bendable lighted surface, free from shadows. With a small 2.00″ bend radius and a slim 0.71″ diameter, it’s ideal for intricate patterns. Enjoy secure mounting options with clear polycarbonate clips and a 6.5′ channel for seamless backlighting.

FLEXILE SM System

Features

Multiple static CCT and solid color options
Compared to traditional neon 360° lighted surface illuminates uniformly without any shadowing
Small diameter of 0.71
High luminous efficiency with LM80 report
Easily bend to any shape with superior flexibility
UV Stabilized with food-grade environmental silicone housing (no yellowing or cracking)
Resistance to saline solutions, acids, alkalis, and corrosive gases
Low Voltage 24V DC

Mounting

Surface, Suspended

Ideal Application

Indoor applications

Specs

Voltage = 24V DC
Lumen Output (lm/ft) = Up to 321, Up to 345
Power Consumption (W/ft) = 4.5
Max Run (ft) = 16.25' Mechanical, 20' Electrical
Dimming = MLV, ELV, 0-10V, DMX, TRIAC
Environment = Dry Location
LED Color ( Kelvin Temp ) = Amber, Red, Green, Blue, 2300K, 2700K, 3000K, 4000K
CRI = 95
Efficacy (lm/W) = Up to 71
Lumen Maintenance (L70) Hours = 70,000
Mount Options = Surface
Certifications = cULus, CE, RoHS, IK08
Warranty = 3 Years

Similar Products

Flexile Midnight & Daylight

Flexile LG System

Trace Horizontal Series

Trace Vertical Series

Downloads

Specification
Flexile SM System Specification
Installation
Flexile SM System Installation
IES File
FLX-SM-40-01-24
