Illumiwall 2.0 RGB+W

Discover illumiwall 2.0: RGB+W pixel control lighting for back-lit architectural panels. Cost-effective, easy install, modular design. DMX control with 1 or 9 pixels per sheet options. Flexible, cuttable to 4”x4” size.
Illumiwall 2.0 RGB+W
Find Your Local Sales Rep

Features

  • Tivoli’s illumiwall 2.0 now available in RGB+W
  • Cost-effective dynamic backlighting
  • Easy installation
  • Modular
  • DMX controlled 1 pixel per sheet or 9 pixels per sheet option

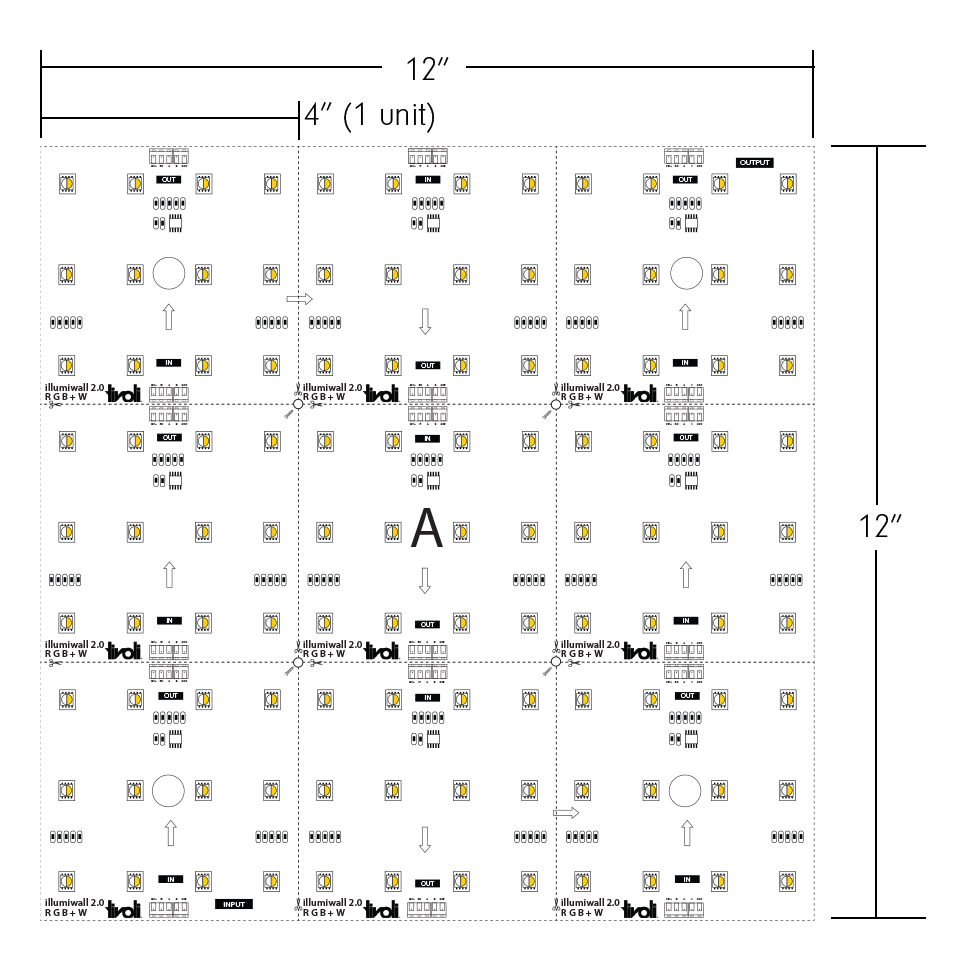

  • Flexible and cuttable down to 4”x4” size to meet any square foot space needed

Mounting

Surface

Ideal Application

Suitable for back-lit, stage, entertainment, and architectural applications behind diffused translucent material

Specs

  • Voltage = 24V DC
  • Lumen Output (lm/ft) = 500+
  • Power Consumption (W/ft) = 18W (sheet), 2W (unit)
  • Max Run (ft) = 5 sheets per circuit
  • Environment = Damp Location
  • IP Rating = IP54
  • LED Color ( Kelvin Temp ) = RGBW
  • Efficacy (lm/W) = 76
  • Lumen Maintenance (L70) Hours = 90,000
  • Mount Options = Surface
  • Certifications = cULus, RoHS, CE
  • Warranty = 5 Years
