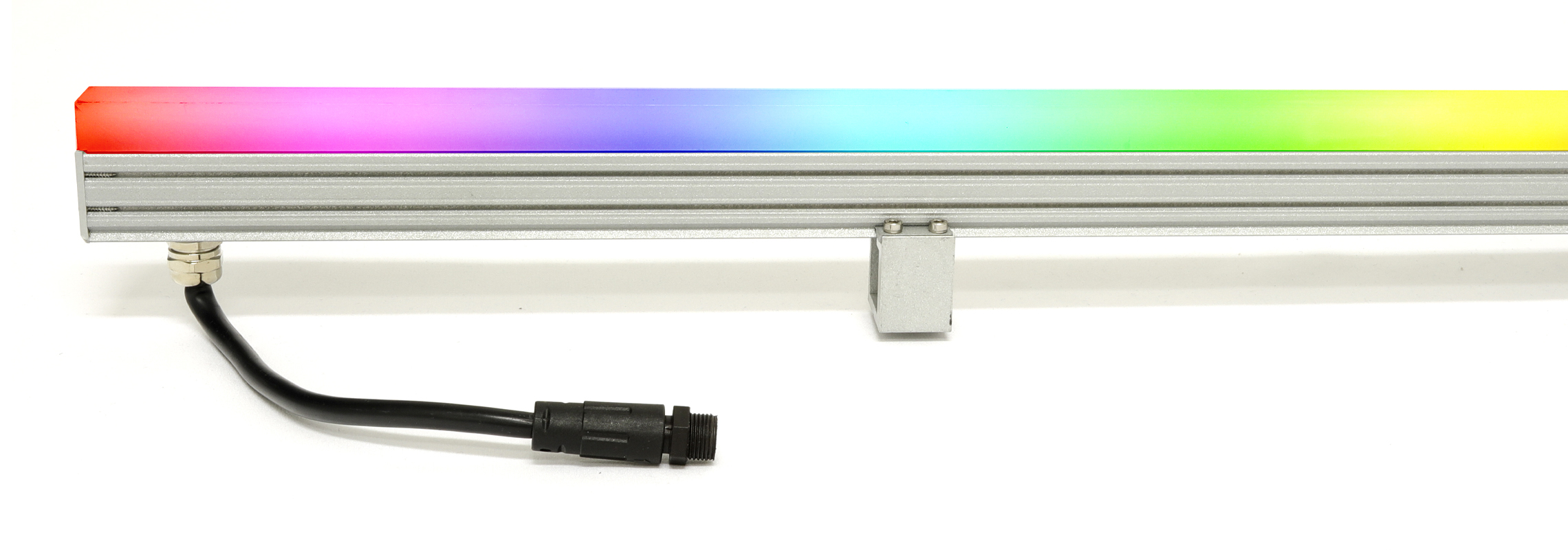

Magic Linear Bar

Tivoli’s Magic Linear Bar™ is designed for architectural facade, bridge, and media display applications. Amazing resolution at 3 pixels per foot and perfect light synchronization with ARTNET system and ESD protection. Dynamic, resolution control, ranging from the entire fixture length down to 4”.

Magic Linear Bar

Features

Saves up to 40% power consumption with efficient power management design
Standard DMX 512 control protocol (Max. 44 frames/second)
Perfect light synchronization with Artnet system and ESD protection
Electrical protection for short circuit, over current, over voltage, and over temperature
Dynamic resolution control ranging from the entire fixture length down to 4″ segments
Mounting brackets included
3G Vibration Rated

Mounting

Surface Mount

Ideal Applications

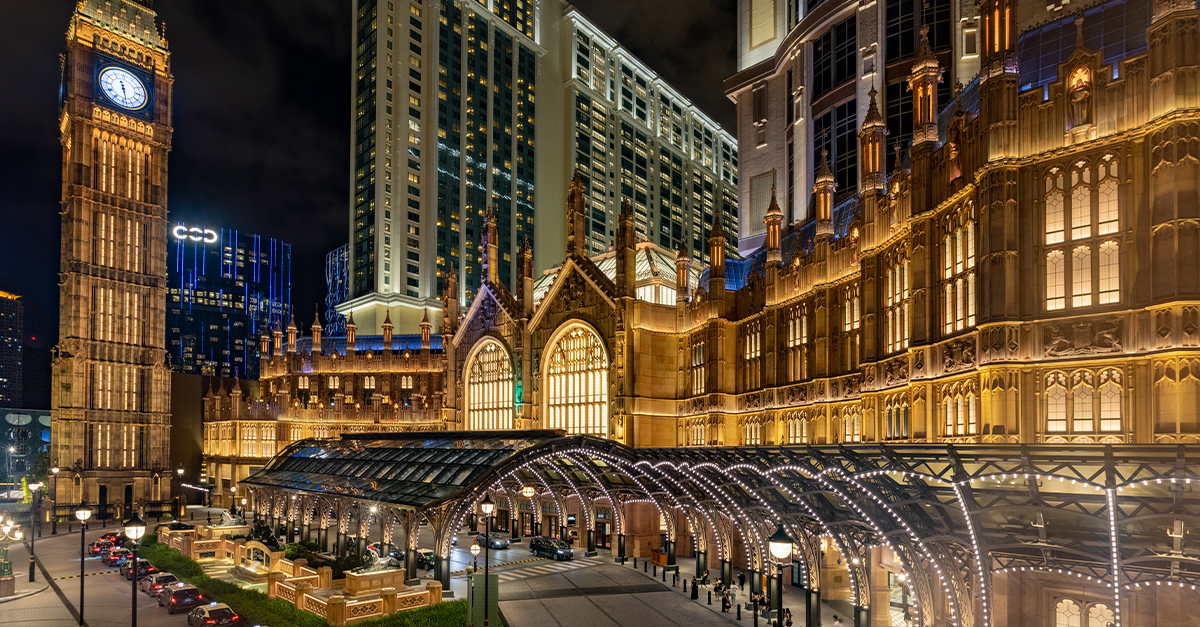

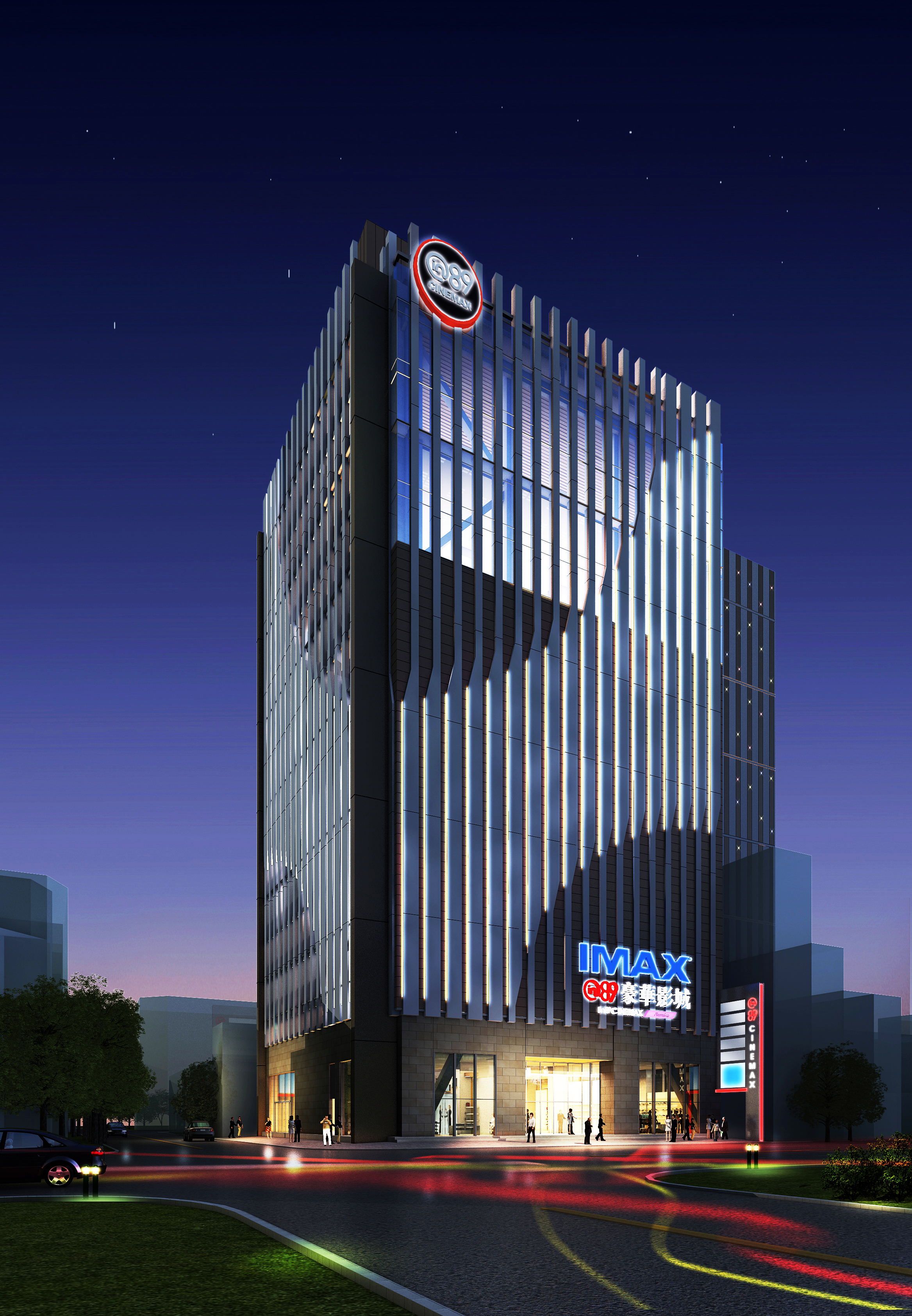

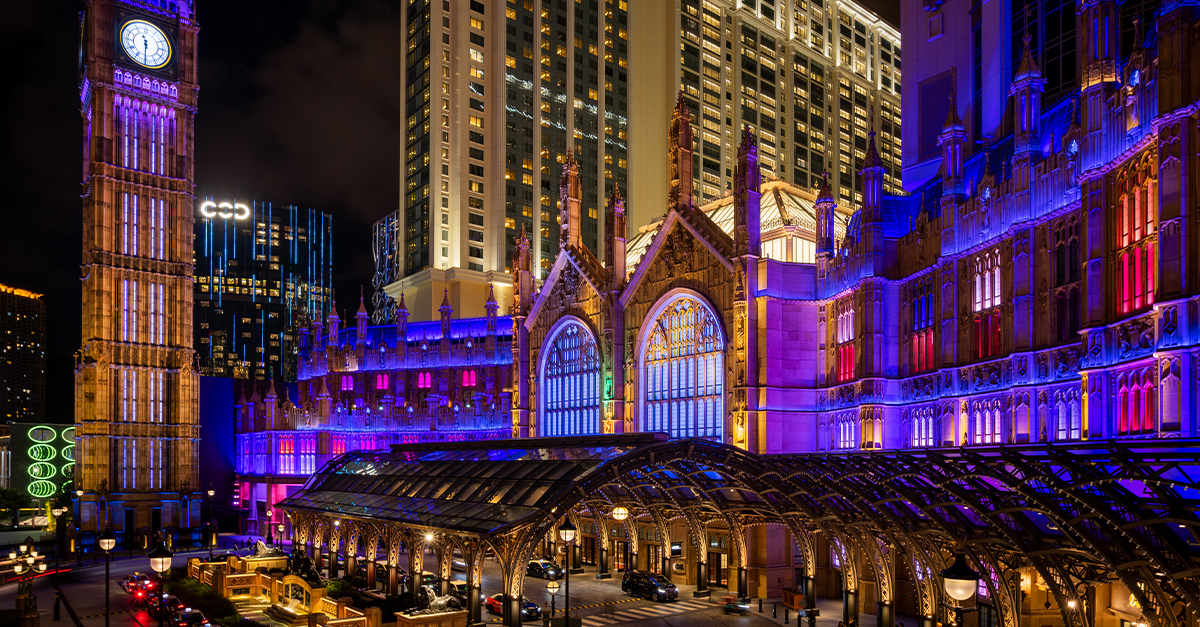

Designed for architectural facade, bridge, and media display applications

Specs

Voltage = 24V DC
Lumen Output (lm/ft) = 100-200
Power Consumption (W/ft) = 3
Max Run (ft) = 32
Dimming = DMX
Environment = Wet Location
IP Rating = IP67
LED Color ( Kelvin Temp ) = RGBW
Control System = Artnet, DMX 512
Pixels = 3 pixels/ft
Vibration = 3G (ANSI C136.31)
Certifications = cETLus, CE, RoHS
Warranty = 3 years

Similar Products

ADAPT True RGB+W

Litesphere True RGB+W

Illumiwall 2.0 RGB+W

254 lm/ft - 58 CRI - 4.4 W/ft

239 lm/ft - 98 CRI - 6 W/ft

207 lm/ft - n| a CRI - 4.4 W/ft

FUSE Pixel24 RGB

322 lm/ft - 92.6 CRI - 5.1 W/ft

FUSE Pixel24 RGBW

370 lm/ft - 61.8 CRI - 5.3 W/ft

Downloads

Specification
Magic Linear Bar Specification
Installation
Magic Linear Bar Installation
IES File
MLB-3-24

Recommended Control(s)

TivoCUE 10

Cue

Madrix 5
