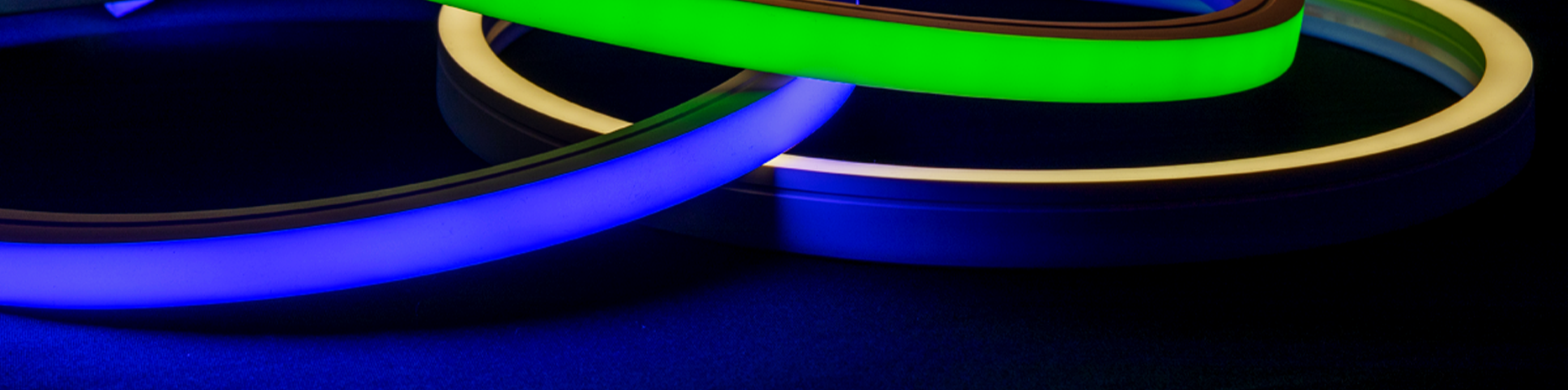

Trace Horizontal Series

Discover Trace Horizontal, our flexible SMD LED solution crafted for curved applications. With zero voltage drop, it ensures reliable, uniform illumination – perfect for outlining structures. Available in Non-Dimming or Dimming, Low Voltage 24V DC, UV Stabilized, IP67 rated, and offering exceptional color consistency.
Trace Horizontal Series

Features

  • Horizontal bend for curved applications where needed
  • Available in: Static, RGB, RGBW, Tunable White, Pixel Chasing
  • Constructed using flexible SMD LEDs with zero voltage drop for reliability and uniformity of light
  • Used to outline structures or where traditional glass neon is used
  • Low Voltage 24V DC
  • Available in Non-Dimming or Dimming version
  • Long-life LEDs with tight cutting increments for precise fi eld installation
  • UV Stabilized for exterior use with silicone housing (no yellowing or cracking)
  • IP67 rated
  • 1 Bin, 1.5 step color consistency

Mounting

Surface Mount

Ideal Application

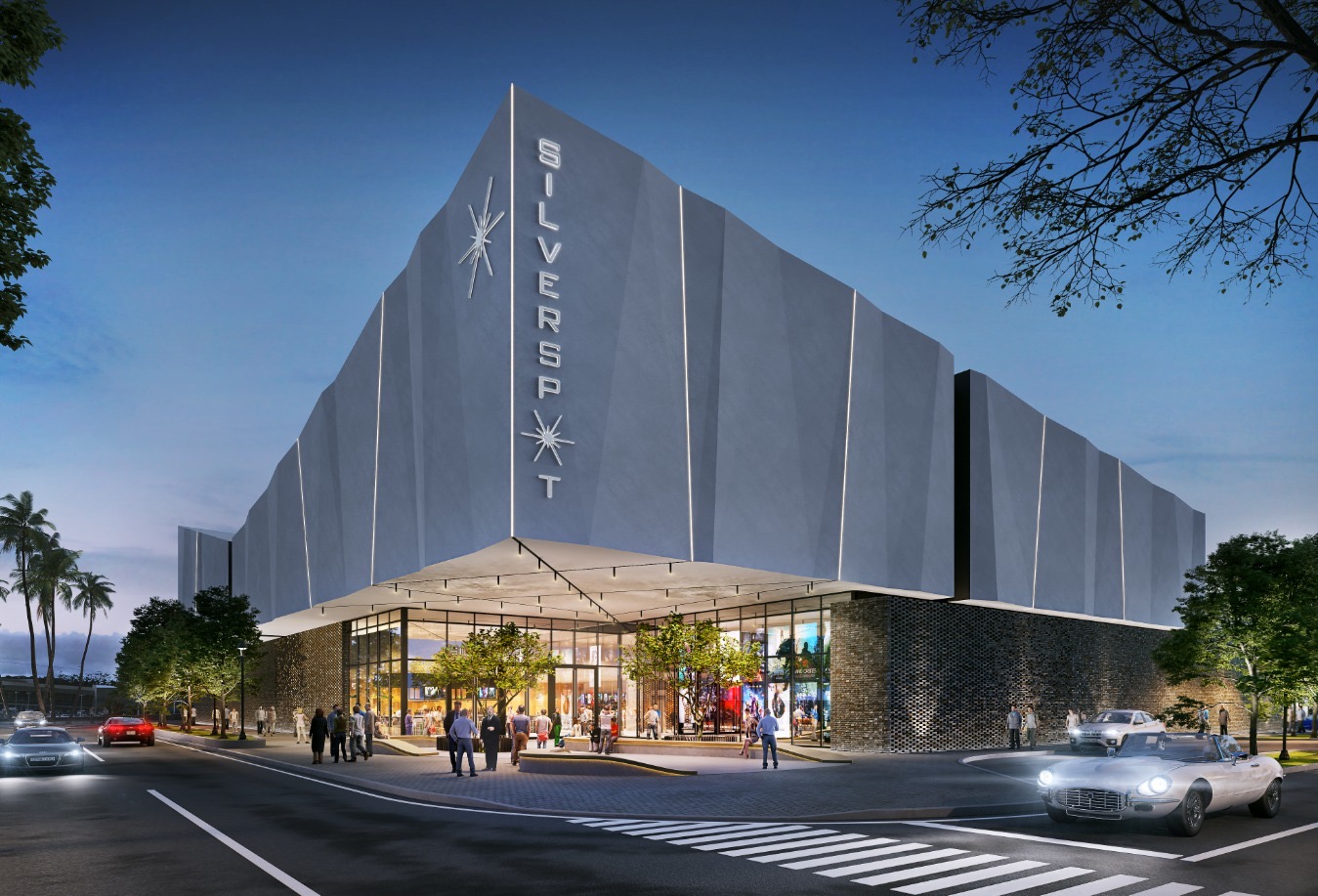

Indoor and Outdoor signs or building accents where smaller, detailed applications are necessary.

Specs

  • Voltage = 24V DC
  • Lumen Output (lm/ft) = 0-100, 11-20, 21+, 100-200
  • Power Consumption (W/ft) = 1.5 (Low Output), 3 (Standard Output), 4.5 (High Output)
  • Max Run (ft) = 19 (High Output), 29 (Standard Output), 58 (Low Output)
  • Dimming = MLV, ELV, 0-10V, DMX, TRIAC
  • Environment = Wet Location
  • IP Rating = IP67
  • LED Color ( Kelvin Temp ) = Amber, Red, Green, Blue, RGB, RGBW, Tunable White (TW), 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
  • CRI = 80+
  • Efficacy (lm/W) = 32
  • Mount Options = Surface
  • Certifications = cULus
  • Warranty = 3 years
