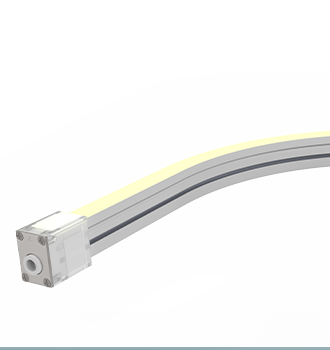

Trace Vertical Series

Illuminate with versatility using Trace Vertical – Now available in multiple static CCTs, color changing, and with pixel chasing features. Specifically designed for vertical curved surfaces, it ensures even, bright light without voltage drop and includes dimmable options for full control.

FEATURES

Vertical bend for curved applications where needed

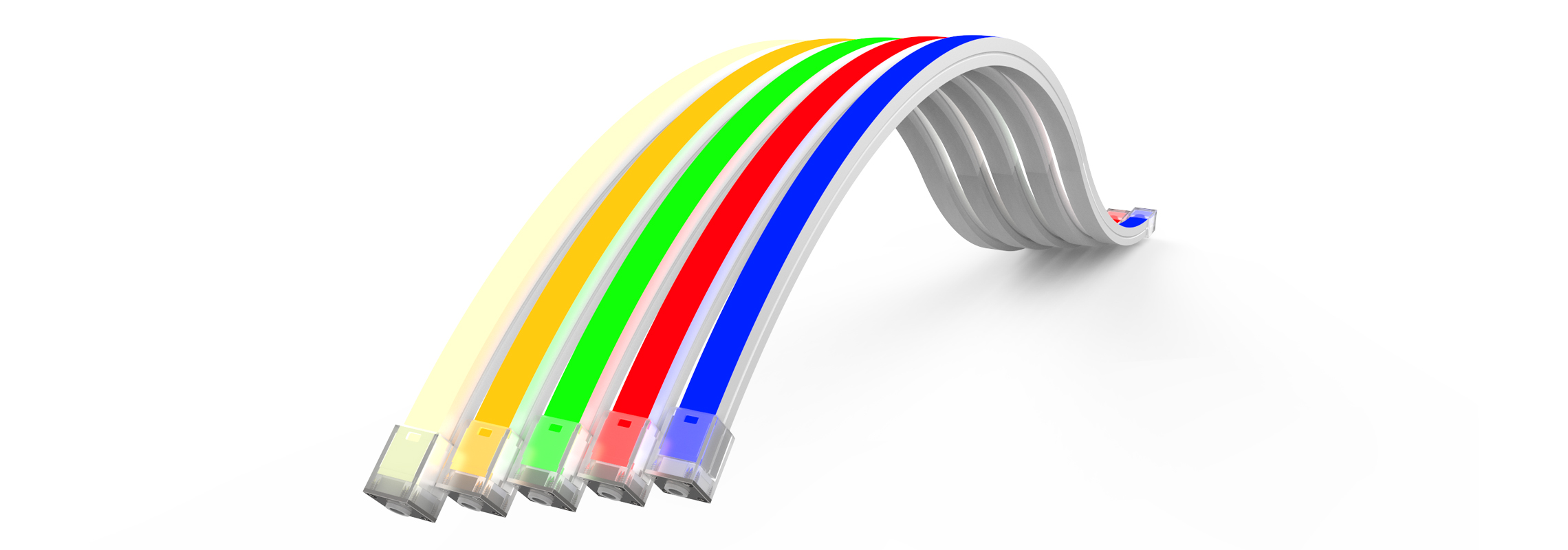

Available in: Static, RGB, RGBW, Tunable White, Pixel Chasing
Constructed using flexible SMD LEDs with zero voltage drop for reliability and uniformity of light
Factory molded power lead and end cap
Used to outline structures or where traditional glass neon is used
Low Voltage 24V DC
Available in Non-Dimming or Dimming version
Long-life LEDs with tight cutting increments for precise field installation
UV Stabilized for exterior use with silicone housing (no yellowing or cracking)
IP67 rated
1 Bin, 1.5 step color consistency

MOUNTING

Surface Mount

IDEAL APPLICATIONS

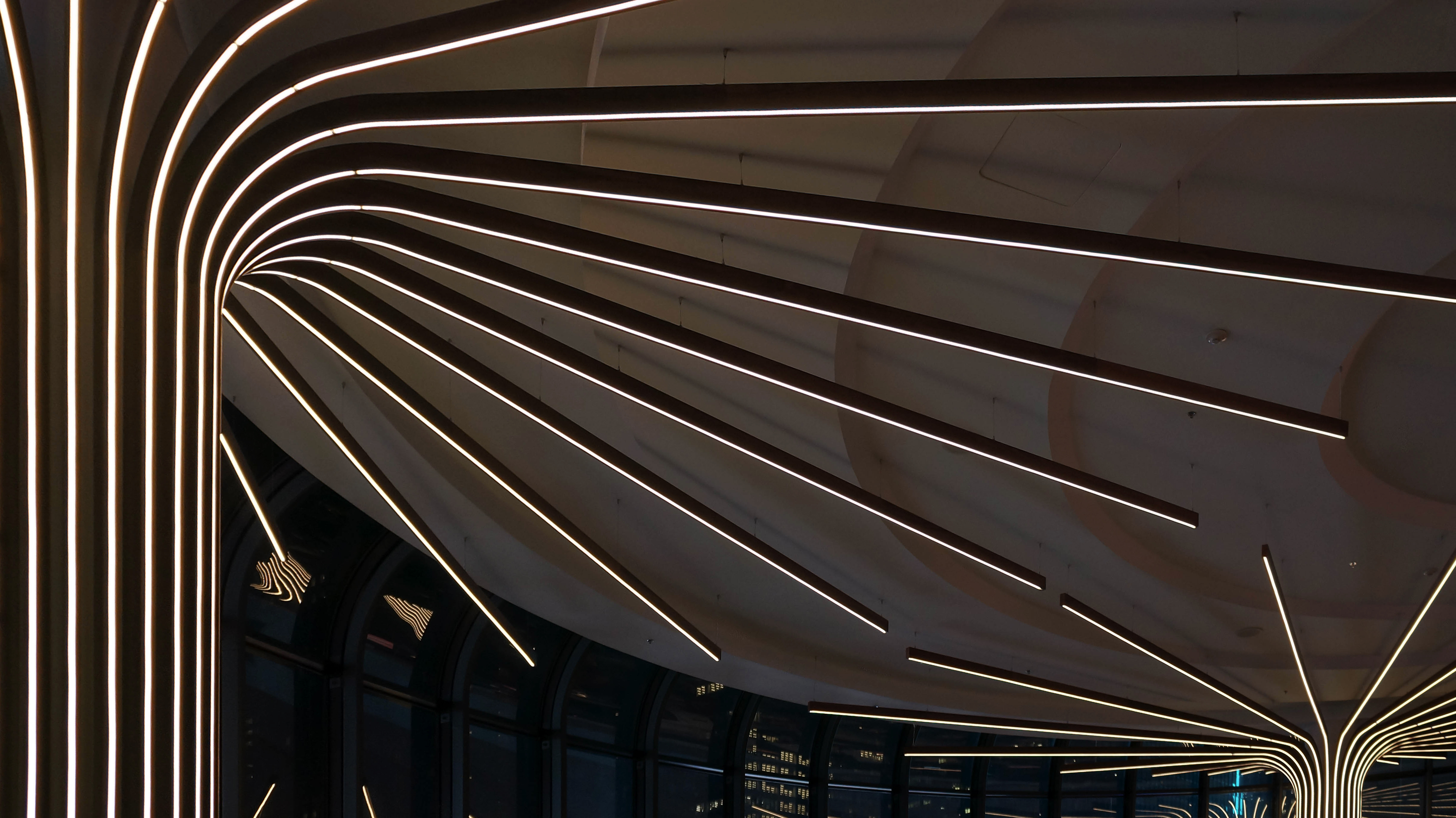

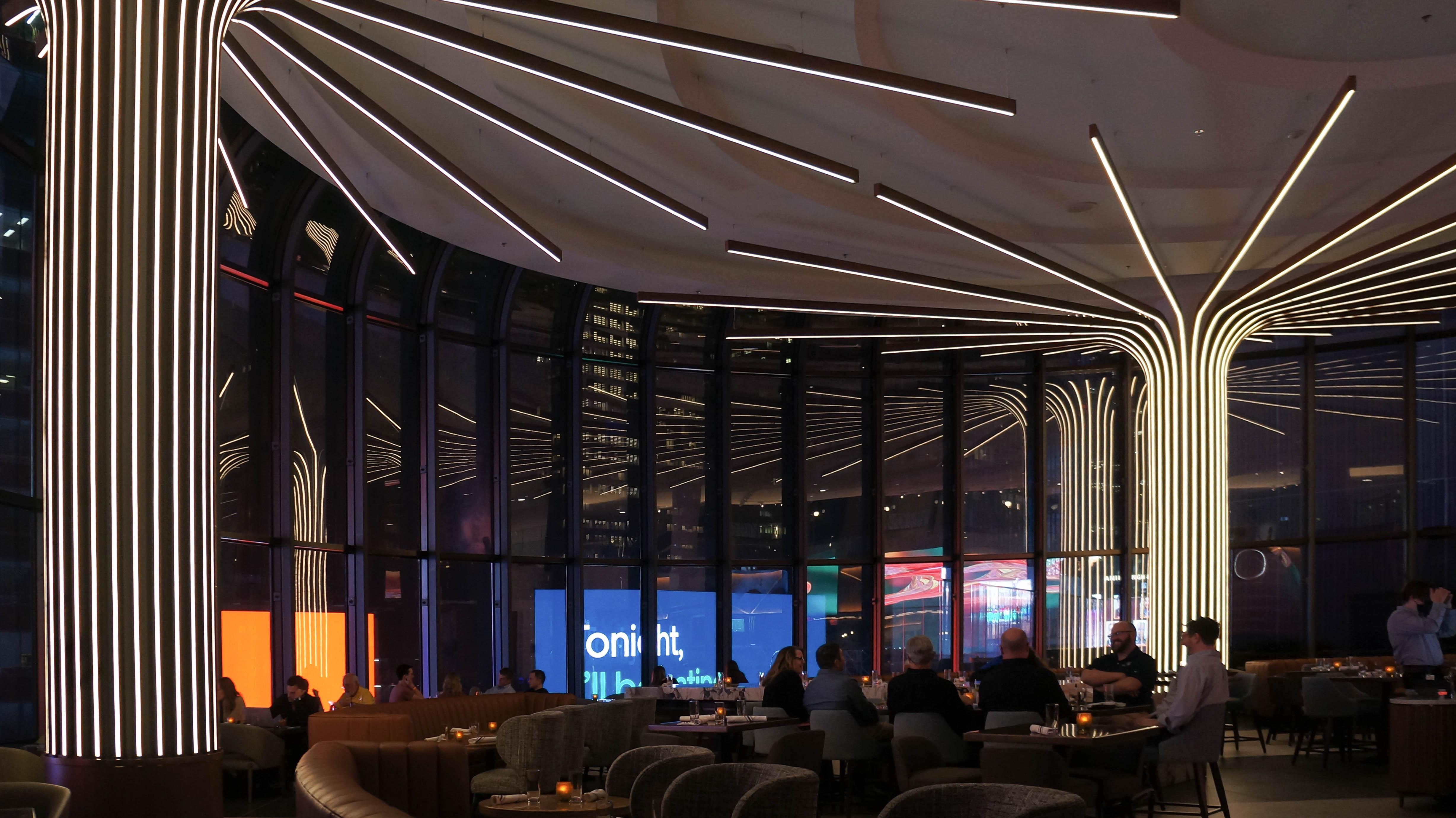

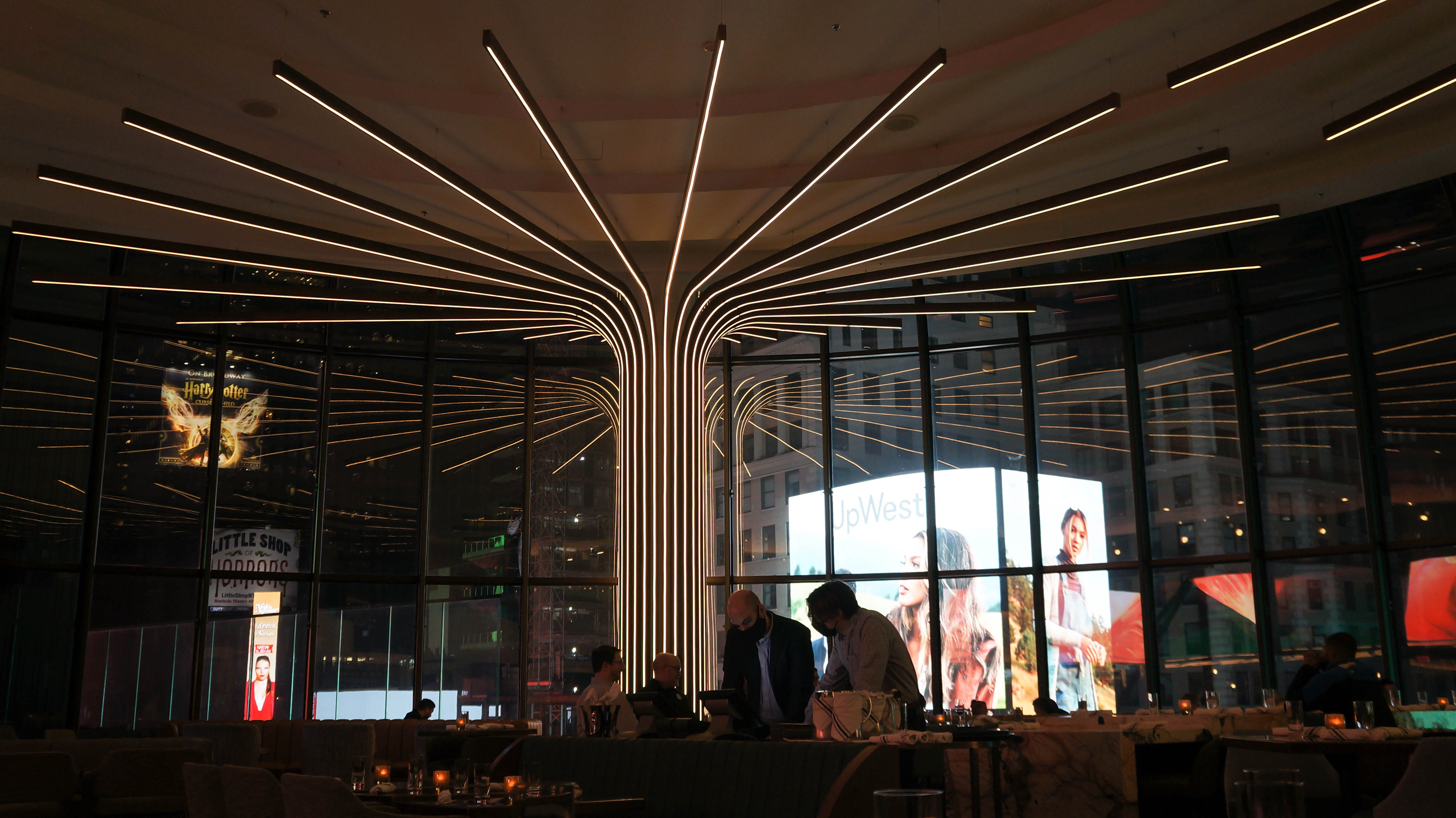

Indoor and Outdoor signs or building accents where smaller, detailed applications are necessary

Specs

Voltage = 24V DC
Lumen Output (lm/ft) = Up to 180, Up to 345, 355, 900 (white chip)
Power Consumption (W/ft) = 1.5 (Low Output) , 3 (Standard Output), 4.5 (High Output)
Max Run (ft) = 19 (High Output), 29 (Standard Output), 58 (Low Output)
Dimming = MLV, ELV, 0-10V, DMX, TRIAC
Environment = Wet Location
IP Rating = IP67
LED Color ( Kelvin Temp ) = Amber, Red, Green, Blue, RGB, RGBW, Tunable White (TW), 2400K, 2700K, 3000K, 4000K, 5000K
CRI = 80+
Efficacy (lm/W) = 58
Lumen Maintenance (L70) Hours = 54,000
Mount Options = Surface
Certifications = cULus
Warranty = 3 years
