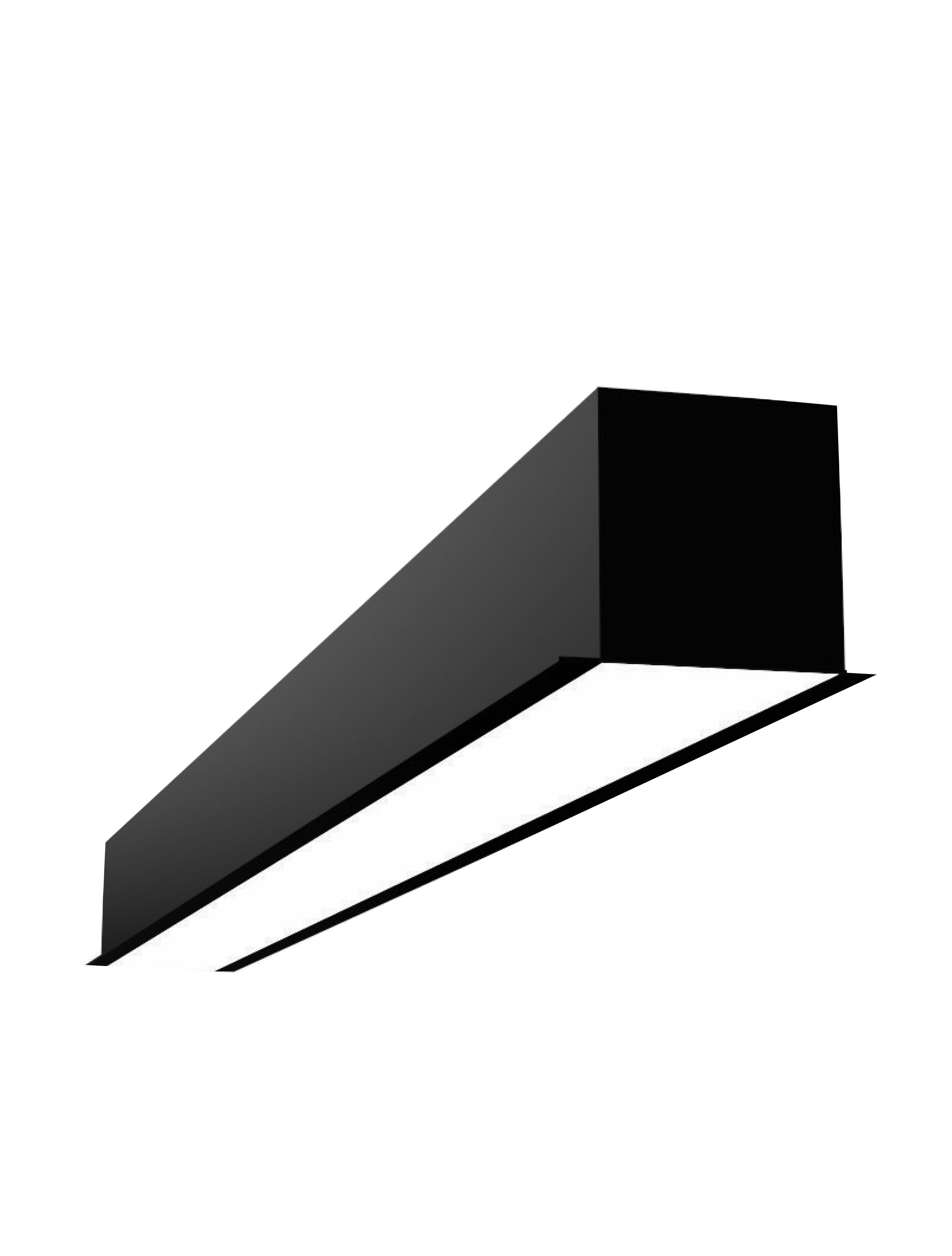

VAST WARP – Straight Run

VAST WAPR is a wide prebuilt fixture for surface, suspended or recessed applications

VAST WARP – Straight Run

Features

Available with or without flanged extrusion
Up to 375 lumens/ft. (all on RGB+W)
Maximum Run up to 20’
Pre-fabricated straight runs
IP54 Rating
5-year warranty

Mounting

Surface or Suspended Mount

Application

Architectural accent to general lighting with multiple mounting options and PC lense for curved applications.

Specs

Voltage = 24V DC
Lumen Output (lm/ft) = 100-200, 300-400
Power Consumption (W/ft) = Up To 8.8W
Max Run (ft) = 21'
Dimming = DMX
Environment = Dry/Damp Location
IP Rating = IP54
LED Color ( Kelvin Temp ) = RGB, RGBW
Lumen Maintenance (L70) Hours = 60,000
Mount Options = Surface, Recessed
Available Lens = Clear, Diffused, Frosted
Certifications = ETLus
Warranty = 5 Years

Downloads

Specification
Vast WARP Straight Prebuilt

Recommended Control(s)

TivoCUE 10

Cue

Madrix 5
