VAST WARP

VAST WARP

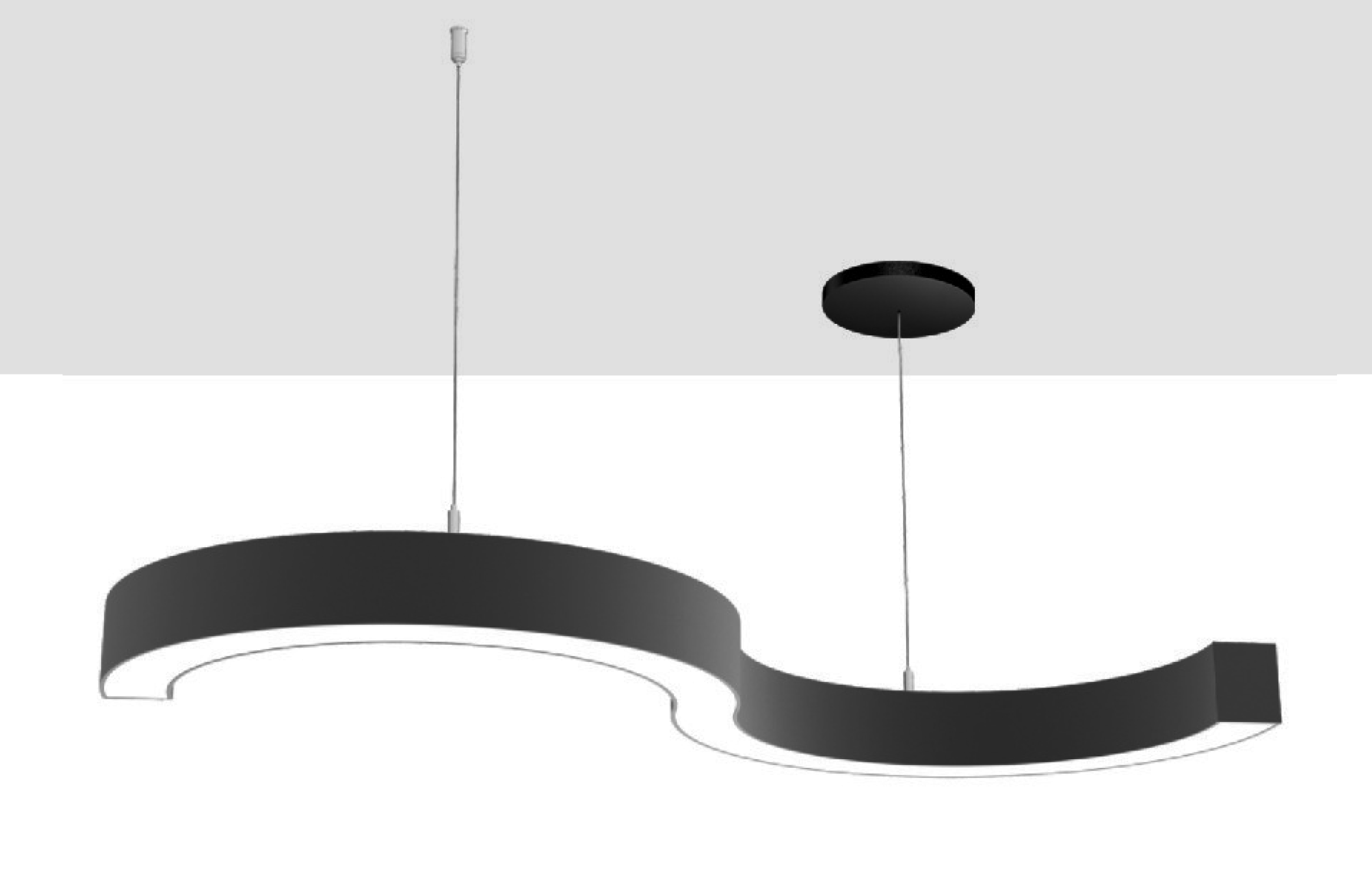

VAST WAPR is a prebuilt fixture for surface or suspended applications that need curved radius bends.

FEATURES

  • Suspended or Surface mount
  • Available with ELITE TivoTape
  • Up to 414 lumens/ft.
  • Maximum Run up to 20’
  • Pre-fabricated curves and PC lense for curved application
  • IP54 Rating
  • 5-year warranty
Mounting

Surface or Suspended Mount

Applications

Architectural accent to general lighting with multiple mounting options and PC lense for curved applications.

VAST WARP

SPECIFICATIONS

  • Voltage = 24V DC
  • Power Consumption (W/ft) = 3.2W - 7W
  • Max Run (ft) = 20'
  • Dimming = MLV, ELV, 0-10V, DMX
  • Environment = Dry/Damp Location
  • IP Rating = IP54
  • Kelvin Temperature = 3000K
  • CRI = 94
  • Lumen Output (lm/ft) = 414.4
  • Lumen Maintenance (L70) Hours = 60,000
  • Mount Options = Suspension, Surface
  • Available Lens = Diffuser
  • Certifications = ETLus
  • Warranty = 5 Years

Product Dimensions
